Hypro
SKU: 9203SHypro 9203S

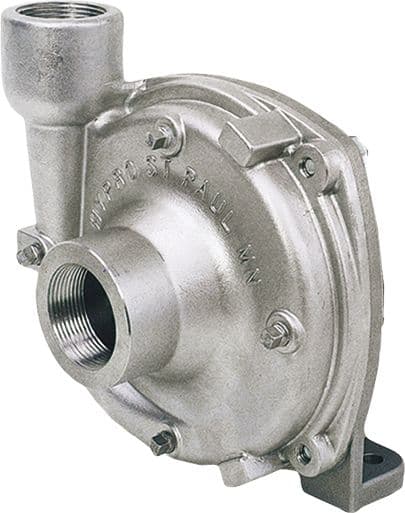

Hypro 9203S
Regular price
£809.00
Regular price
Sale price
£809.00
Unit price
/
per
+ 20% VAT & Shipping calculated at checkout.
Couldn't load pickup availability
• Max. flow: 140 gpm/530 lpm (free flow)
• Max. pressure: 180 psi/12.4 bar (Shut off)
• Max. speed: 6000 rpm
• Max. fluid temperature: 140°F/60°C
• Pedestal mount, direct drive
• Housing: available in cast iron and stainless steel
• Port sizes: 1 1⁄2" NPT inlet, 1 1⁄4" NPT outlet
• Shaft: 5⁄8" solid
• Pump shaft rotation: CCW (9203C-R is CW)
• Impeller: glass-filled nylon (cast iron standard); glass-filled polypropylene (stainless standard)
• Pump seals: Cast Iron models – Viton/ceramic standard (Life Guard™ silicon carbide, Buna-N ceramic and Viton/silicon carbide available); Stainless Steel models-Life Guard™ silicon carbide standard
• Universal flange available
• Weight: 19 lbs./8.6 kg
View full details
• Max. pressure: 180 psi/12.4 bar (Shut off)
• Max. speed: 6000 rpm
• Max. fluid temperature: 140°F/60°C
• Pedestal mount, direct drive
• Housing: available in cast iron and stainless steel
• Port sizes: 1 1⁄2" NPT inlet, 1 1⁄4" NPT outlet
• Shaft: 5⁄8" solid
• Pump shaft rotation: CCW (9203C-R is CW)
• Impeller: glass-filled nylon (cast iron standard); glass-filled polypropylene (stainless standard)
• Pump seals: Cast Iron models – Viton/ceramic standard (Life Guard™ silicon carbide, Buna-N ceramic and Viton/silicon carbide available); Stainless Steel models-Life Guard™ silicon carbide standard
• Universal flange available
• Weight: 19 lbs./8.6 kg
-
Diaphragm Pumps - Add a filter!
Shurflo and other manufacturer warranty is void if pump is used without a filter. Be sure to add one to your setup to keep debris out of the pump and extend its lifespan.
-
Replacing a no longer available unit?
If you are looking to replace an old discontinued unit, please contact us and we will recommend the closest model currently available.
