Spraytech
SKU: M2302009Mounted Airblast Sprayer 200L M2302009

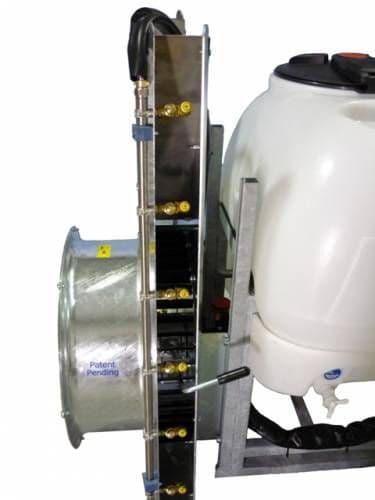

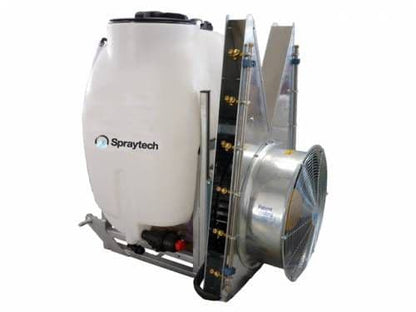

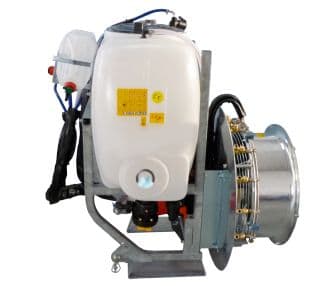

Mounted Airblast Sprayer 200L M2302009
all prices exclude VAT 20%
Couldn't load pickup availability
Suitable for tractors of min. 18 HP. Hot galvanized steel tubular frame three-point linkage (type 0 or smaller); polyethylene tank with total tank drainage and folding lid; external level scale; 15L hand-wash tank; tank for system washing; suction filter with self-filling valve; hydraulic stirrer; drain valve; remote pressure controller. Hot galvanized conveyer with stainless steel nozzle holder staffs, nylon glass fan with adjustable blades and clutch, one-speed gear box with declutch and neutral position, brass nozzle holders with check valve and independent shutting, ceramic nozzles of 1,0mm
- 200L Tank
- AR 503 Pump
- 55 l/m
- 40.0 BAR
- 18 req. HP
- 500 fan diam.
- 6 blades
- 5+5 nozzles
- 9+4 m A+B
- 75x120x120
-
Diaphragm Pumps - Add a filter!
Shurflo and other manufacturer warranty is void if pump is used without a filter. Be sure to add one to your setup to keep debris out of the pump and extend its lifespan.
-
Replacing a no longer available unit?
If you are looking to replace an old discontinued unit, please contact us and we will recommend the closest model currently available.
