SKU: 282588ST

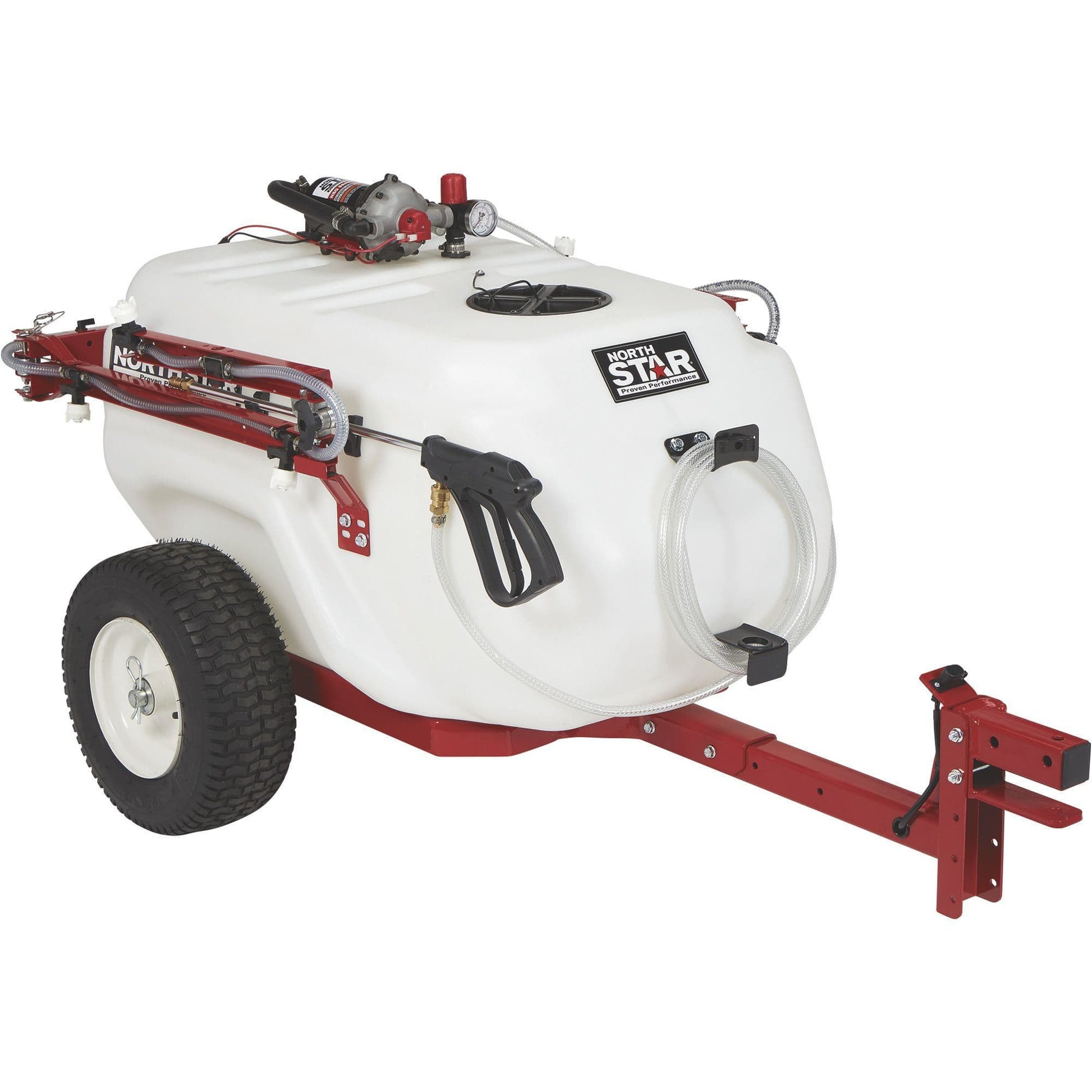

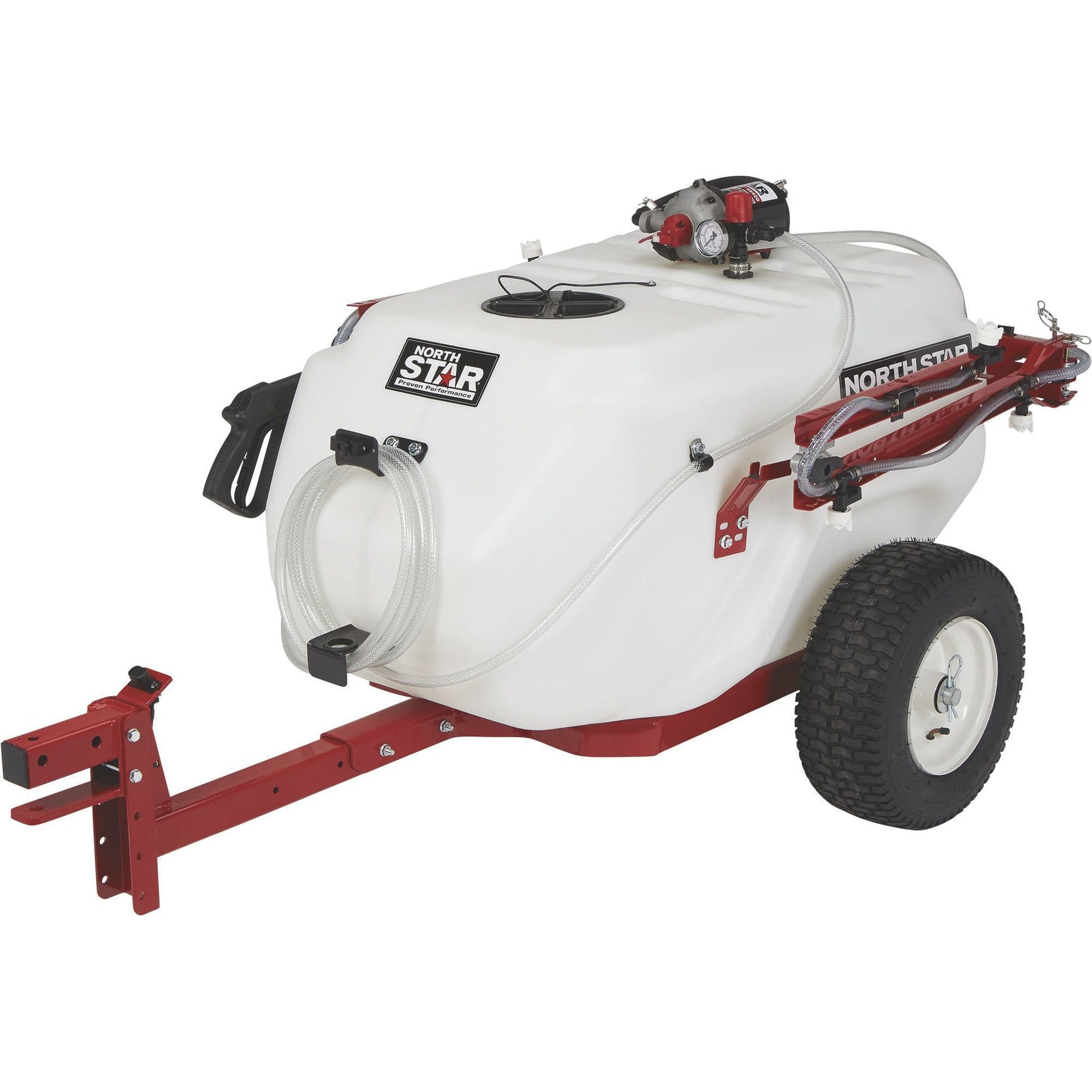

NORTHSTAR 230L Tow-Behind Sprayer

NORTHSTAR 230L Tow-Behind Sprayer

Regular price £1,125.00
Regular price Sale price £1,125.00
Sale Contact Us for Price/Lead Time

all prices exclude VAT 20%

VAT & Shipping calculated at checkout.
  • 61-gallon capacity polymer tank with extra-thick walls is chemical and UV resistant
  • Delivers up to 5.5 GPM open flow and 60 PSI max. for quick spraying times
  • 11.7ft. broadcast pattern
  • Provides the power you need to reach a vertical spray height up to 22ft. max., and a horizontal spray distance of up to 33ft. max.
  • NorthStar NSQ Series pump is built with a Santoprene™ diaphragm and patented DXS-3® Viton® valves for performance, chemical compatibility and durability
  • Pump automatically turns off when no flow is required to conserve battery power
  • Oversized electric motor is rated for 100% continuous duty to eliminate down time
  • Steel boom has built-in valves with left, right, or center flow control
  • Built-in regulator with pressure gauge allows you to finely tune spray pressure
  • Steel cart with 16in. pneumatic wheels makes easy work of towing over rough terrain
  • Spring-loaded breakaway boom arms deflect when struck, and fold against the sides of the tank for compact storage
  • Deluxe trigger spray gun has adjustable stream to cone brass nozzle and 21ft. hose
  • Adjustable height tow bar hitch fits a wide range of tow vehicles
  • Large 7 1/2in. dia. tank lid for easy filling
  • Hose wrap on the front of the sprayer and 2 spray gun storage locations keep things tidy when not in use
  • Bottom mount tank drain makes rinsing the tank quick and easy
  • Sump is built into the bottom of the tank for complete fluid draining
  • 8ft.L wire harness with battery clamps for easy battery connections/disconnections
  • Bypass flow returns to tank to keep chemicals mixed well
  • 12V DC power
Tank Size 61 Gal
Flow 5.5 GPM
Pressure 60 PSI
Spray Height 22 ft
Broadcast Width 11.7 ft
Horizontal Spray Distance 33 ft
Spray Pattern Cone, stream
Spray Gun Type Spot, Broadcast
Hose Length 252 in
Pump Type NorthStar NSQ Series
Tow Behind Cart Included Yes
Dimensions L x W x H (in.) 63 x 38 x 34
View full details
  • Diaphragm Pumps - Add a filter!

    Shurflo and other manufacturer warranty is void if pump is used without a filter. Be sure to add one to your setup to keep debris out of the pump and extend its lifespan.

  • Replacing a no longer available unit?

    If you are looking to replace an old discontinued unit, please contact us and we will recommend the closest model currently available.
