Spraytech Econospread Mini

Main use for the spreader

Advantages

The spreader is with a 12 volt drive independent from other drives that are run cardan or hydraulic. Two work steps in one-this way you safe time and money!

Technical Data

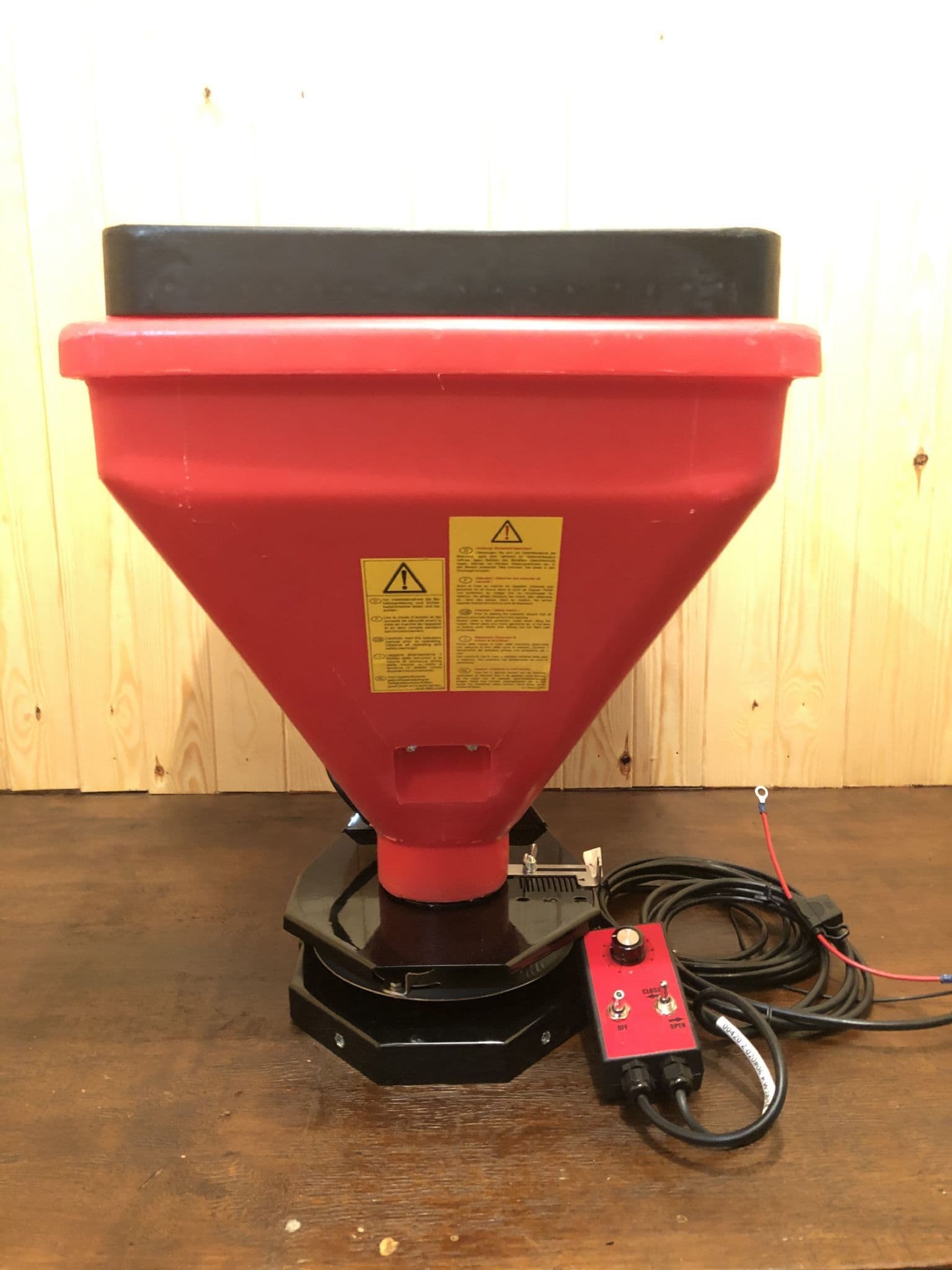

Control console

Serial standard

• Operation of the control console from the driver seat while driving

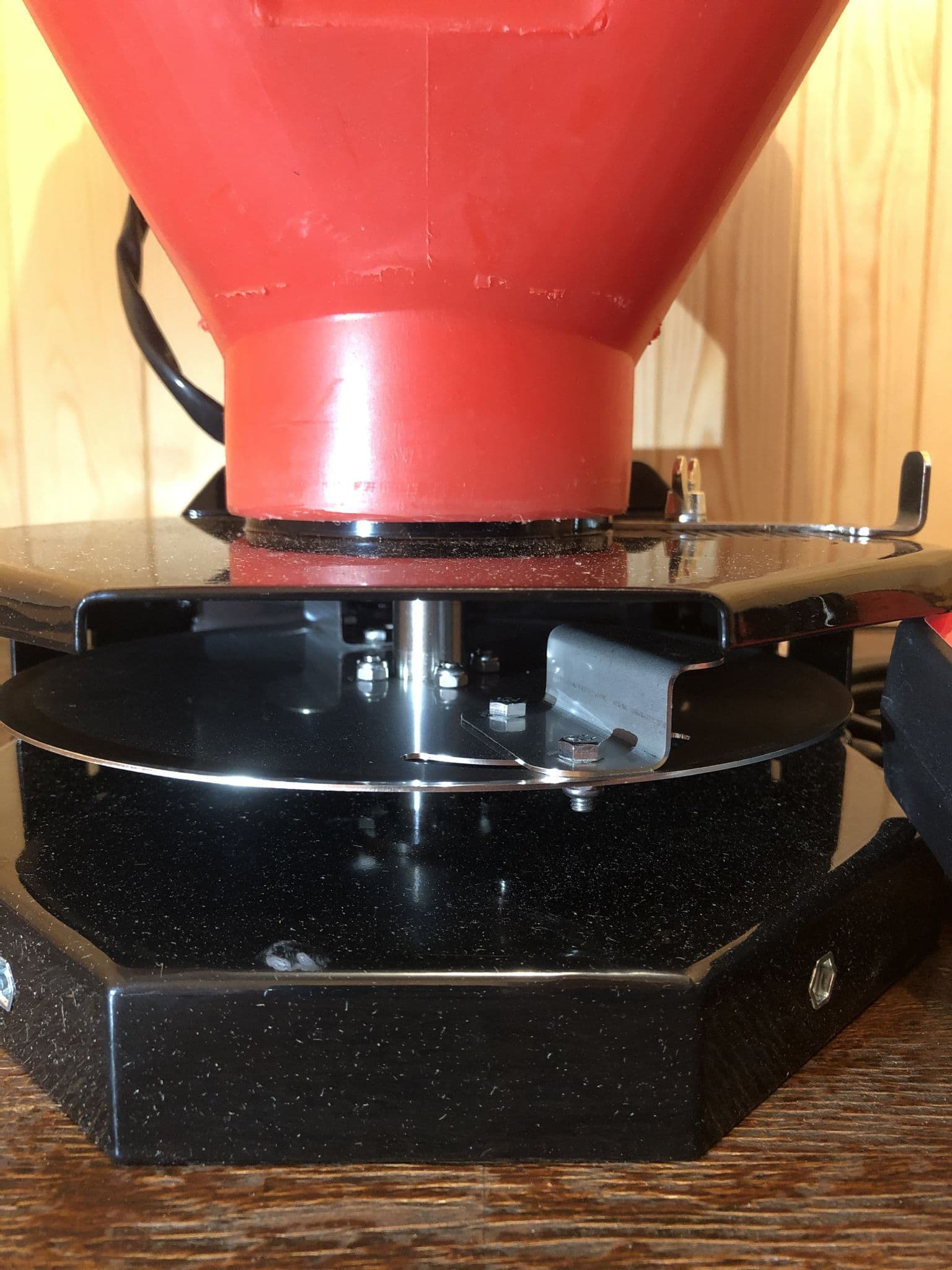

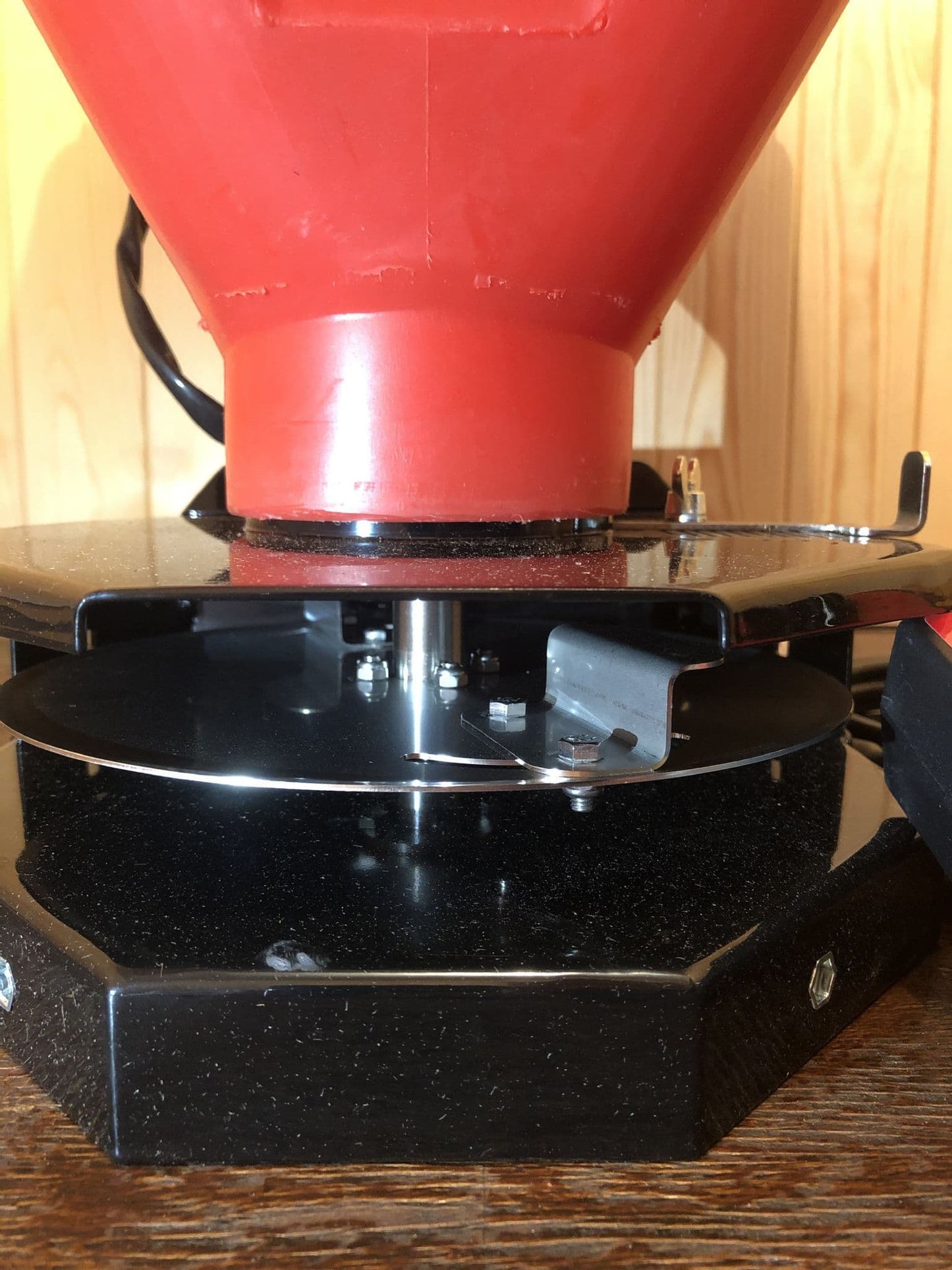

• Electric driven spreading disc with adjustable vanes

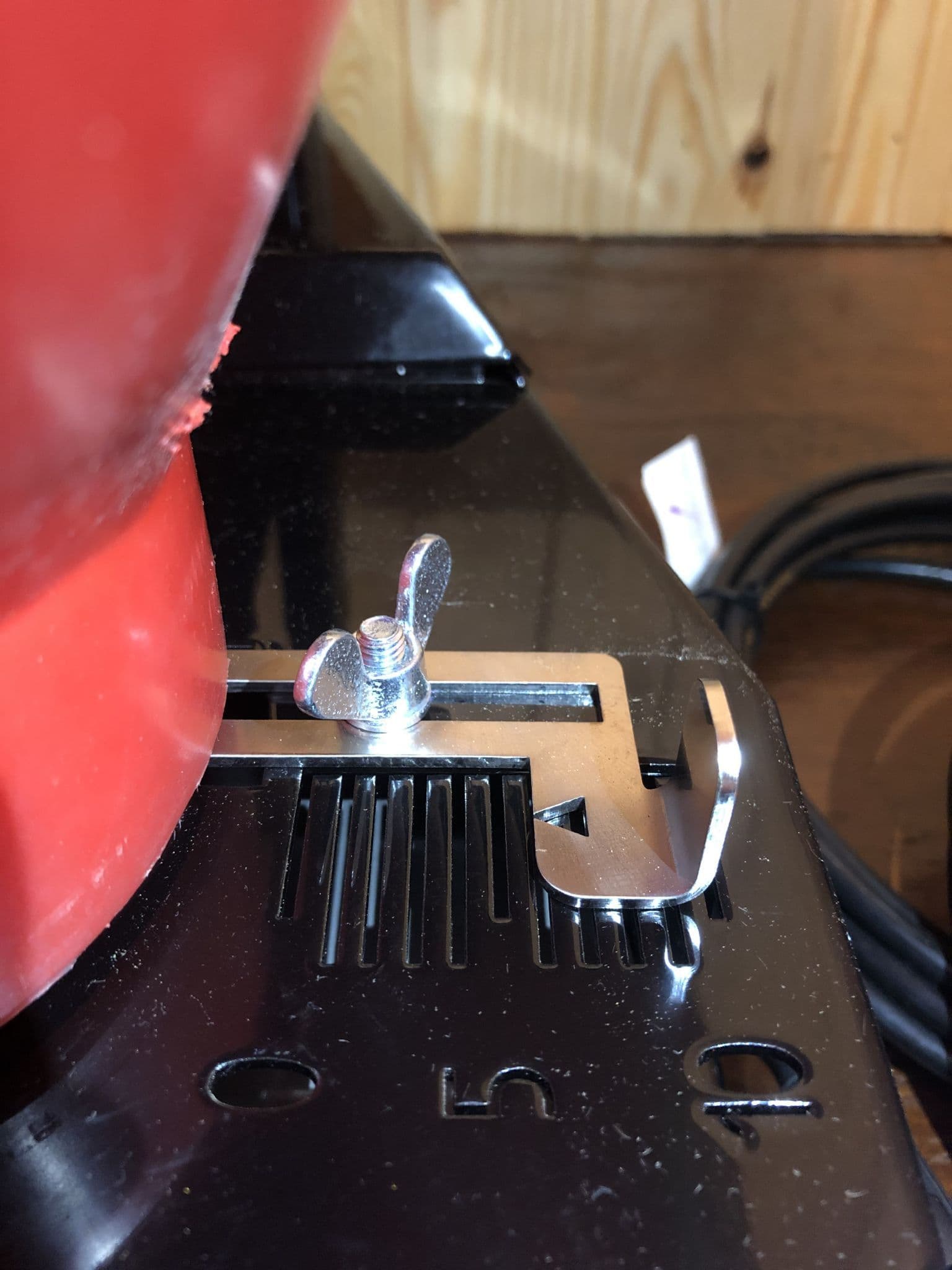

• Smooth regulation of the spreading range from 1 up to 7 m
• Synthetic container with 40 l capacity
• Hopper lid
• 3 m long power cable (2 x 1,5 mm2 cable profile)
• 6 m long cable from spreader to control console
• 12 volt electric motor with 110 watt

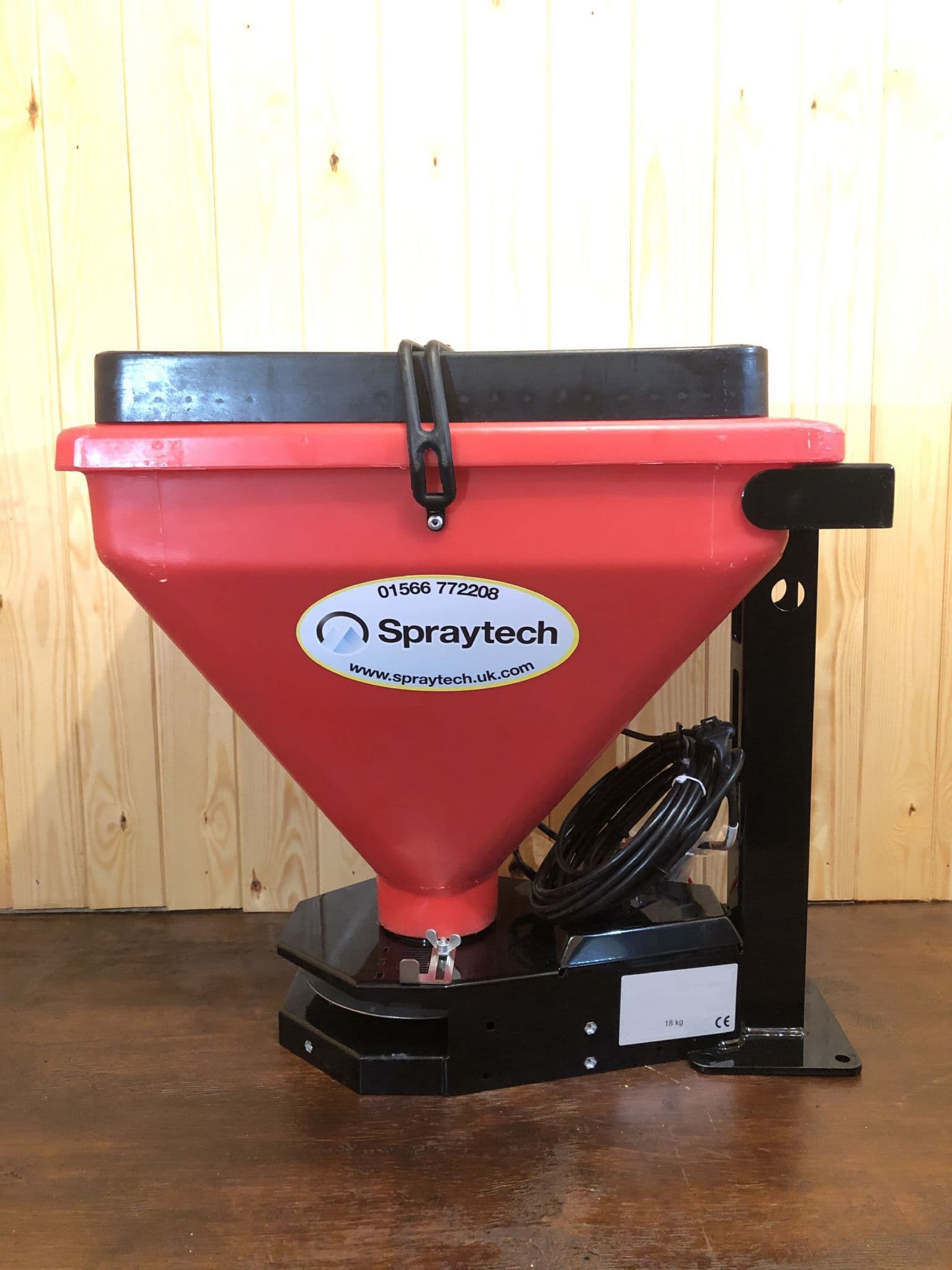

• Three point mounting mechanism (bolt available as an accessory)
• Powder coated frame

Optional Accessories (contact for price & availability)

• Counter plate: for mounting the unit on the front hydraulics or a machine
• 3-point plug: for electric power (for steady positive socket, mounted on tractor).
• Bolt: for the three point hitch (for front mounting recommended)
• Deflector (baffle plate): to define the spreading width
• Mounting plate for the trailer hitch: for build up on the tow coupling
• Truck bed mounting plate: to mount on vehicles with a bed or pick up trucks
• Quad mounting bracket: for quads or ATV's
