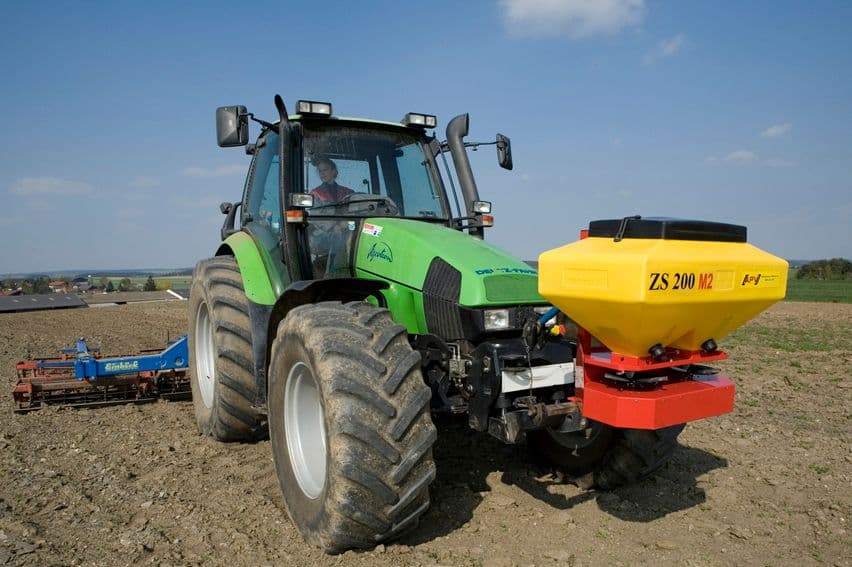

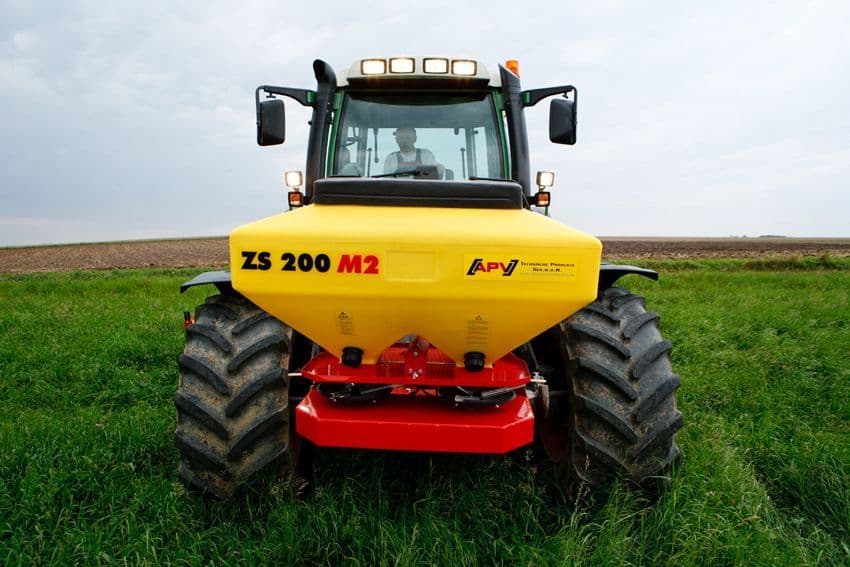

ZS 200 M2 Electronic Seeder

• Cultivating intercrops (Greening)
• Grass reseeding
• Cultivationg slug pellets
• Nurse crops
• Sowing on fallow land

• Electronically adjustable sowing rate
• RPM monitoring and control, which helps to keep the RPM constant
• Area calculation
• Soft start motor for compacted scatter material
• Operating-voltage meter and operating hours counter
• Option to choose different languages
• Fenceline spreading
• Discharge function
• Calibration-test function

The spreader discs are driven by two 12V electric motors, and can be conveniently operated from the driver‘s seat, via the electric control module.

Thanks to the ability to continuously adjust the flow of scatter material with the electric metering slide valve, the right quantity of any seed is always guaranteed.

Working width
1 – 30 (continuously variable)

Dimensions
H 100 cm, B 100 cm, D 68 cm

Seed tank
Plastic tank with 200 l capacity

Net weight
43 kg

STANDARD SCOPE OF DELIVERY

• Two electrically driven spreader discs, each with 3 adjustable U-throw blades

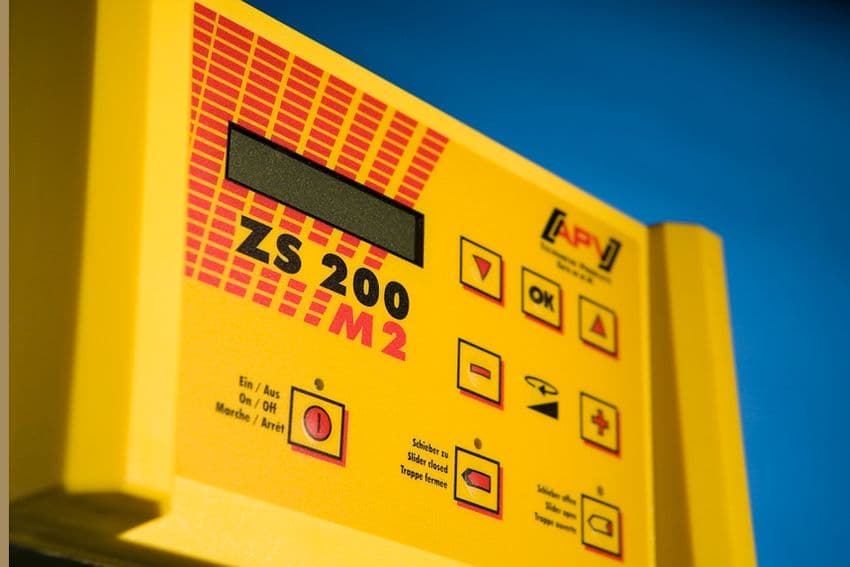

• Electric control module with steel bracket, mountable in the driver‘s cab
• All required cables
• Two hopper discharge points
• Upper-linkage mounting mechanism
• Fenceline-spreading
• Counter-plate

BENEFITS versus the COMPETITION:

• Contact point adjustment for optimum scatter distribution
• 3 broad throw blades per spreader disc
• 15° optimised scatter plate
• Seed volume adjustment while driving
• External agitator: no more grinding the seed into powder!
• Extra strong and precise slide valve
• Larger scatter opening for improved material flow

FOR USE WITH:

• Tractor (single pass)
• Tillage implements
• Weeders, tractors, harrows
